NextPreviousHomeHow to use the new Gradient effect



michiel | 3 years ago | 10 comments | 9 likes | 1,289 views

LostBoyz, Alex-Raymond T., liuyongcai and 6 others like this!

Version 15.2 introduces the ProceduralTextures\Gradient effect.

Apply it to a picture layer and you have a nice colour gradient.

Of course such textures can easily be created in a paint app, but with this effect you can immediately see the result in the 3D scene without constantly having to save the texture and refresh the show. Plus you can animate all the props!

This screenshot demonstrates how it looks applied to a picture layer and a sketch layer.

On the left, the gradient is horizontal.

In the middle, the gradient is rotated 90 degrees with the FX ROTATION prop. And it is mirrored with the FX MIRROR prop. This looks much better when applied to a sketch layer. The size of the stripes can be set with the FX SIZE prop, but also with the TEXTURE SIZE prop of the sketch layer.

In the right picture, the FX CLAMP prop is set to (0.8, 0.8).

The fun starts with the FX PERIOD prop. This sets the time in seconds of the looping animation. So a smaller value means a higher speed. Set it to 0 to turn it off.


Download media files (9.6 KB)

Share this on FacebookShare this on X


The effect also has an additive version: ProceduralTextures\Gradient_Additive.

This does the same, only with additive blending. It creates a nice neon look!

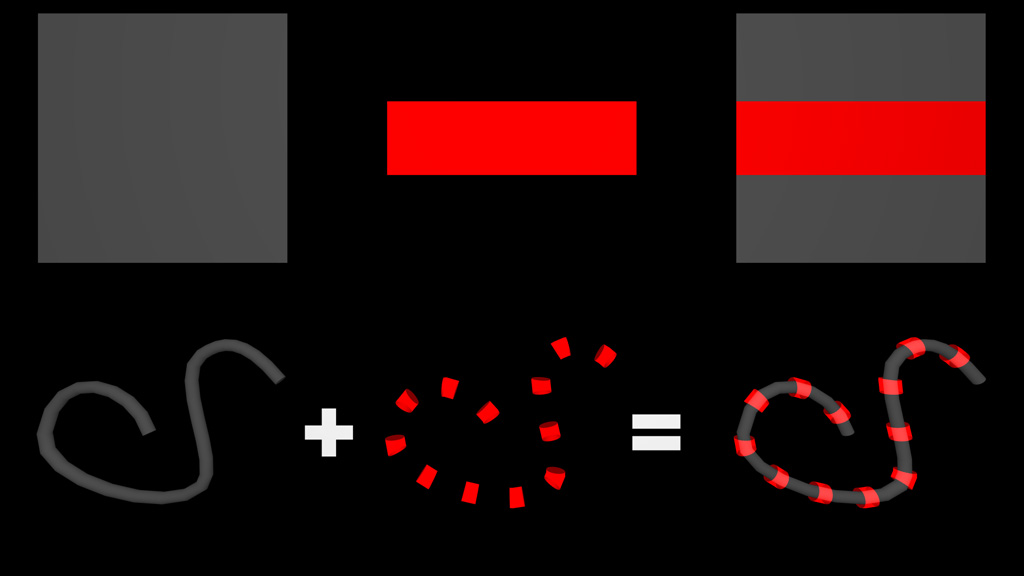

For sketch layers it works great when combined with the normal version. The picture in the bottom right is rendered with 2 sketch layers. The red version uses the Gradient_Additive effect with a slightly bigger PEN SIZE prop.
