NextPreviousHomeAlpha channel

Franco Aversa | 7 years ago | 22 comments | 2.1K views

@Michiel

Hi, in BluffTitler the black background is transparent (alpha channel),
there is an effect or is possible to attribute to a form the transparency of the alpha channel?
For example, if I make an EPS full circle, is possible that here passes the video signal if than I export the animation with AVI transparent?
So on the video editing program, I can insert a signal in these shapes, writing etc ...

Thanks




Share this on FacebookShare this on X

The transparency of the EPS layer can be adjusted with the TRANSPARENCY property.

When you animate this property and export the video with transparency you have an animated alpha channel.

Is this what you are looking for?

michiel, 7 years ago




Sorry, I can not explain well,

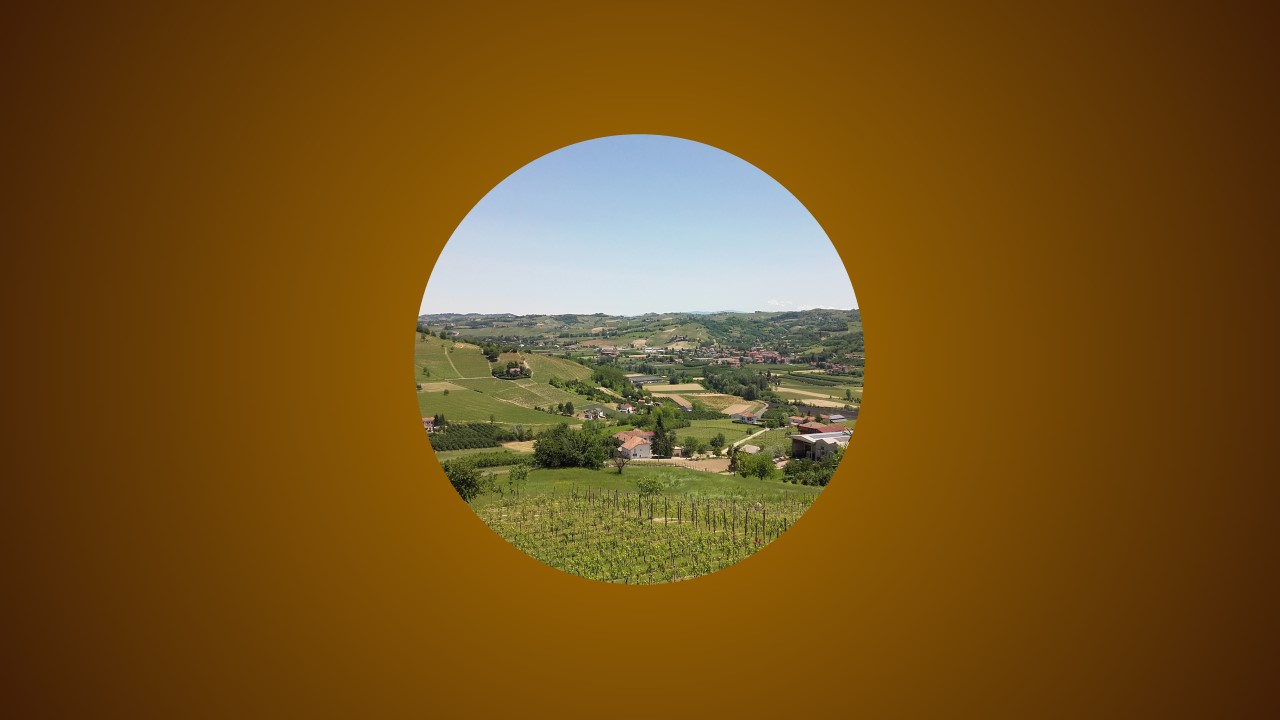

I say that even if there is a background or other opaque layers, have a layer that creates an alpha channel even though behind it has other layers. As in the image I attached.
I know it can be done directly in BluffTitler, but can you do it in editing?
If I put a transparent EPS it disappears and that's enough, so I see the layer behind it.
Can I insert a video from the edit software on this hole? Or I can color it green and make a chromakey in editing, but it's not the same thing.
Thanks, sorry for the bad explanation.

Franco Aversa, 7 years ago




if there was a "key" signal, the editing program could pass the video at that point

Franco Aversa, 7 years ago


place 1st pic on pos 0 0 500 (background pic)
place 2nd pic on pos 0 0 486
place solid text on pos 0 0 480 and set transparency to 0.99

vincent, 7 years ago


Franco, do you mean that you would like to invert the alpha channel?

And have you already experimented with the Special\Masked effect?

michiel, 7 years ago


Yes Michiel,
I would like to create inverse masks (with shapes and letters) where I insert the video using the video editing software...as in this attached video ... (just here I did everything from BluffTitler). This would create a curtain (wipe) to be used in editing video software.
Sorry if I make you crazy ...

Franco Aversa, 7 years ago


Works perfectly with BluffTitler

vincent, 7 years ago


and you get something similar to my this video ... (This is made with black and white background and shape and use mask effect on video editor )

Franco Aversa, 7 years ago


100% BT....

vincent, 7 years ago


what effects did you apply?
I know the audio effect, I say for the key.
Thank You, Vincent.

Franco Aversa, 7 years ago


no cfx, i have explained how i did it above (4th comment). Inconvenient of the method : i did not found how to create soft borders.

vincent, 7 years ago


I tried Vincent, but I did not understand why I did not succeed, so please get me the file?

Franco Aversa, 7 years ago


Franco, here is a simple file. Does it work for you ?
IMPORTANT : Z position of Rond.EPS (layer #3) must be very close of the Z position of picture layer #5 .

vv.matalot.fr...

vincent, 7 years ago


your file works, I tried to redo it, the key works but when I move the circle turns off and turns on.
Thanks so much.
Now I'll do some tests

Franco Aversa, 7 years ago


Ok thank you V E R Y M U C H

Now it works.

I do not know how to thank you

?

Franco Aversa, 7 years ago


Franco, i had the problem too, it seems there is a great sensitivity with the EPS Z position, maybe you must adjust a little the Z position along the timeline adding some position keys and/or modifying some existing.
To tell the truth, i don't know why it works, is it a bug ?! i noticed it doesn't work any more when changing eps depth bias to 100 or -100
But it seems working a little better with depth bias = -100 for layer 5 (brick wall)

vincent, 7 years ago


I'm happy if it works for you, so it's enough for me as thanking.
You can play with sketch and text layers too.

vincent, 7 years ago


thanks again, that was what I was looking for.
I do not have to do this with an external program!

Franco Aversa, 7 years ago


@Vincent

if you remove the background image, the remaining black hole leaves the alpha key, so it also works on the external video editing program !!! WOW

Franco Aversa, 7 years ago


Super, Franco, our BluffTitler is G R E A T ! ! ! ?

vincent, 7 years ago


Thanks for showing this.

@Franco,
Removing the background image leaving black and exporting as AVI (compressed) with transparency makes a huge file of almost 3GB using Vincent's file.

Exporting to MP4 has a black background, but using a chromakey of black doesn't work because any black in the overlay image will become transparent in the video editor.

I changed the background picture to white.png, made it green and increased the size to cover the screen. Now I have a green screen effect. I exported to MP4 and gave it a chromakey green in the video editor. Worked perfectly and the file size was now only 2.4MB. Of course, if the BT images have green in them, there could be a problem.

I'm learning.
JCB

JCB, 7 years ago

The trick is effectively to give the background a unique color in order to key it in a chroma process.

Jeep35, 7 years ago
