Snitch | 7 years ago | 10 comments | 2.2K views

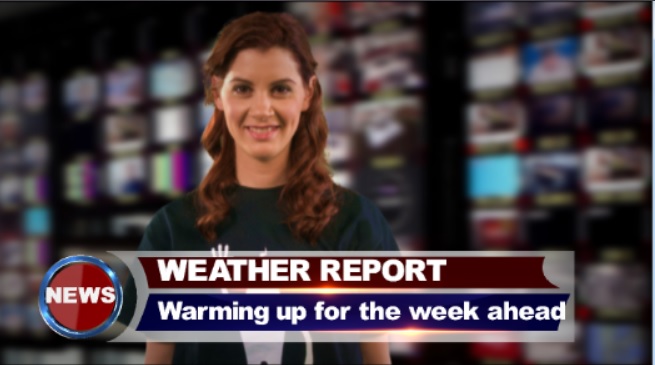

I have a little challenge.. my Question is.. how can i make this title effects (snag.gy...) look perfect after removing image of the lady and the background and export to corel visual studio (snag.gy...). Please advise
ACTION TAKEN:
1. I've removed the layer that is rendering the image of the lady (selected the layer and clicked on the DELETE ACTIVE LAYER button)
-I exported with transparency info (chose FILE > EXPORT AS VIDEO and selected one of the transparent options)
IMPROVEMENT NOTICED
1. I see that the lady's picture is gone
ISSUE STILL PENDING

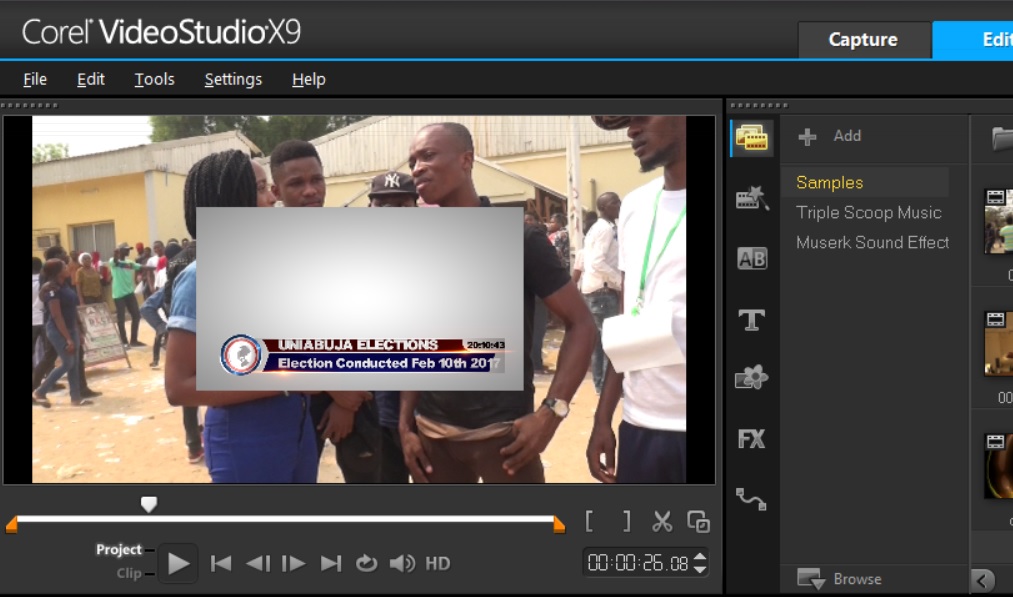

1. But the Gray colour Background is still showing. I want the title to show on a video i recorded without the gray colour background affecting the video
i exported it to the video editor but the gray colour background is still showing. I only want the Title "UNIABUJA ELECTIONS - ELection conducted Feb 10th 2017" I only want it to show on the video without the gray colour background hiding the video
Snitch, 7 years ago
Every video editor has it's own way of importing video with alpha channel (transparent background)
Corel video is not in the Blufftitler export list outerspace-software.com... in the videostudio manual is stated that it supports alpha channel by selecting "convert to animation" greykey, in the link is a youtube tutorial.
Good luck,
P.s.
I don't own Bixpack 14 Broadcast so I don't know what else is in the show, but if the show has a black background but shows as grey it is probably the above mentioned issue. To test use a new show with a text layer and export as uncompressed AVI with transparency.
komies, 7 years ago
Thanks Komies for the assistance.
Quick Question... can i replace the lady photo with a video i covered on my phone using blufftitler? How do i do that?
Snitch, 7 years ago

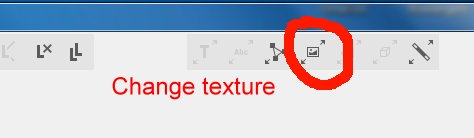

you select the picture layer then click 'change texture' and you select your video. Format (codec) must be supported by BluffTitler (no problems with wmv, for others depend on the codecs installed on your computer)
Then adjust the size of the video (4th parameter of combo below SAVE button) if you maintain key CTRL during resizing aspect ratio is preserved.
vincent, 7 years ago
A quick way to check the alpha channel is to temporarily apply the System\ViewAlphaChannel effect to the camera layer.

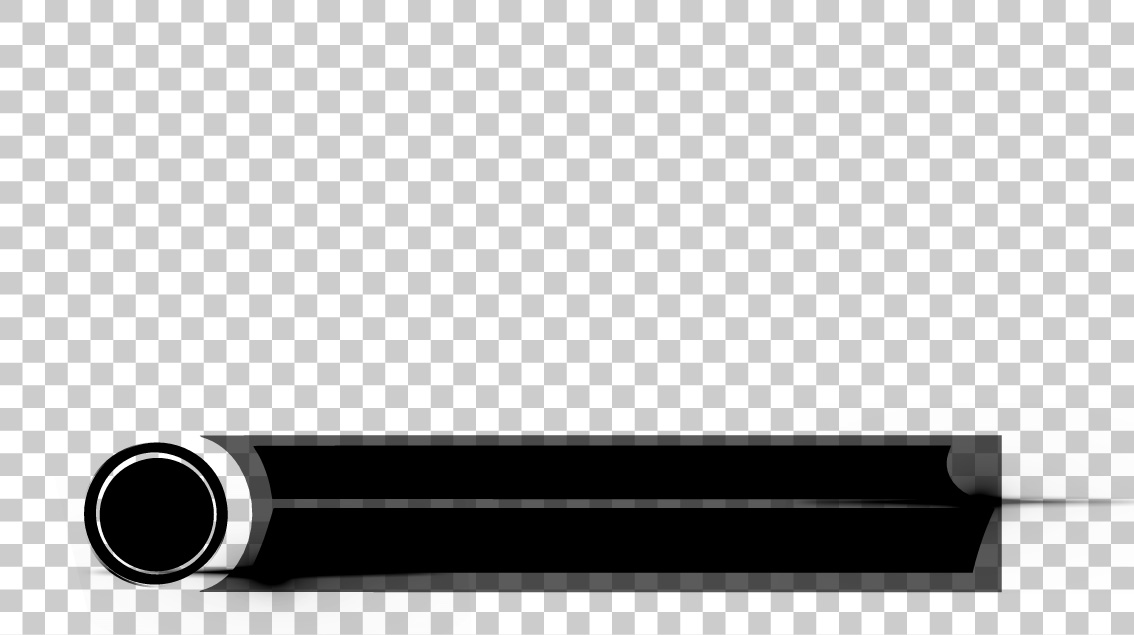

When setting the FX CHECKERBOARD prop to 1 it looks like this. Looks fine to me!
Don't forget to remove the effect.
Maybe this should be a keyboard shortcut to do it even quicker.
michiel, 7 years ago
Changing a picture into a video is as easy as choosing EDIT > CHANGE ALL TEXTURES... and selecting a video file.
But in this case it's probably better to export with transparency info and add the video in your NLE.
michiel, 7 years ago
Is it still possible to output live key and fill channels simultaneously with Blackmagic Design Decklink card for example? Does version 13 support this?
kugo, 7 years ago
Do you think you may bring that support back?
And if I may, please request you to do so :)
Thank you!
kugo, 7 years ago
